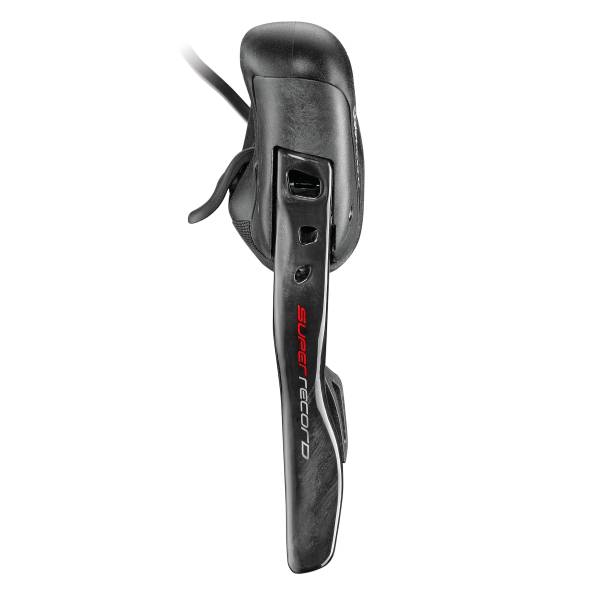

Campagnolo Super Record EPS 12S Brake-/Shifter Lr - Bl

The Super Record electronic group, featuring its 12-speed drivetrain, is regarded as the benchmark for performance and reliability, holding the necessary qualifications to maintain its historical role as a reference for performance and quality for the most demanding cyclists.

The Super Record EPS series combines the extremely low weight and immense reliability of mechanical models with the latest electronic technology, creating a drivetrain system with a unique level of performance and functionality.

Campagnolo Super Record EPS DB Ergopower Levers
E-Ergonomics - shape, functionality, and complete control over the drivetrain

Shape and functionality were central to the design of the Campagnolo Super Record EPS Disc Brake 2x12-speed brake/shifter lever. To achieve the most efficient and effective ergonomics, the Campy Tech Lab conducted detailed studies. The revised brake lever and the placement of the downshift lever provide the cyclist with an intuitive, practical, and comfortable "control center."

Additionally, the Super Record EPS DB Ergopower lever features the already proven AMS Adjustment Technology (Adjustable Modulation System), allowing the desired brake force modulation to be set, as well as the Reach Adjustment Feature, which determines the optimal distance between the brake lever and handlebar.

The Multishifting technology, which allows for multiple gear shifts with a single action, is extended to the entire 12-speed cassette. With the MyCampy app, the entire Super Record EPS groupset can be adjusted to shift up or down by up to 11 gears with a simple click.

The Multi-Dome Technology, developed in close collaboration with professional athletes sponsored by Campagnolo, ensures a perfect balance between operating force and tactile feedback, making the application of force more perceptible at the moment of shifting. Racers need to be able to "feel" the moment to operate the rear derailleur or front derailleur effectively.

The instrument that gives the athlete complete control over the functions of the drivetrain system is the MODE button, located on both control levers, left and right, just behind the downshift lever. This allows the cyclist to check the battery charge level, fine-tune the rear derailleur or front derailleur even while riding, and perform various diagnostics.

Highlights of the Super Record EPS Ergopower brake/shifter lever
One-lever-one action and direct response for perfect shifting every time
Shift up to 11 gears with just one click thanks to the Multishift feature
Compatible with the MyCampy app for adjusting the entire Super Record EPS groupset.
AMS Adjustment offers 2 settings to modulate brake force
Ergonomically adjustable grip width for any hand and finger size
Multi-Dome Technology for clear perception of the shifting moment
Material: composite (lever body), carbon (lever)
Weight: approx. 381 grams (pair, manufacturer’s claim)

Campagnolo Flat Mount Brake Caliper
Powerful, flexible, and reliable.

Thanks to their phenolic resin pistons with a diameter of 22 mm, the Campagnolo Flat Mount disc brake calipers enable powerful and modular braking performance in any situation. This lightweight material provides good thermal insulation, ensuring consistent braking performance even over long periods.

To meet the demand for maximum performance, the forged aluminum construction provides the necessary stiffness and strength. The return mechanism of the pistons has been optimized for a quick return of the brake pads to their starting position, simultaneously dampening vibrations during braking and minimizing the total play between the brake pad and disc (0.4 to 0.8 mm).

Special attention was also given to simplifying maintenance and assembly tasks during the development of the brake caliper. Accordingly, the pads are equipped with wear indicators. Their replacement is also facilitated by the absence of physical return springs. The insertion of the disc into the caliper has also been optimized to make wheel changes easier and faster.

Highlights of the hydraulic disc brake caliper
Forged aluminum construction for maximum stiffness and durability
Phenolic resin pistons ensure consistent braking performance
Improved brake pad return mechanism to reduce vibrations
For 140 and 160 mm brake discs (140 mm version for max rider weight of 82 kg)
DB310 brake pads with unique organic brake pad composition
Material: aluminum (brake caliper), phenolic resin (piston)
Weight: approx. 118 grams (140 mm caliper including brake pads, manufacturer’s claim)

Scope of delivery:
hydraulic disc brake set:
Ergopower brake/shifter lever
caliper, including brake pads
brake line (filled)

- Electronic Power Shift
- Including brake pad holder and brake hose
- Flat Mount
- 12-Speed

Specifications:
Brand: Campagnolo
Model: Super Record
Type: Disc brake
Mounting: Rear wheel
Diameter: 140 mm
Weight: 381 grams
Material: Aluminum, Carbon
Color: Black
Manufacturer's article number: EP21-SRD12LR4E
