Campagnolo Super Record Brake-/Shifter 12S L Disc Ø160 - Bl

The Super Record 2x12-speed group embodies Campagnolo's technological expertise and development potential at its highest level. This group is designed for those who want to equip their bike with the best that the prestigious Italian brand has to offer in terms of performance and distinction. To improve something that is already considered a reference point, not even the smallest detail can be overlooked.

The individual components are extremely lightweight yet highly robust. These two aspects make the Super Record a hallmark of Campagnolo's innovation capabilities; the technologies, materials, and craftsmanship used to create this group elevate it to a category of its own.

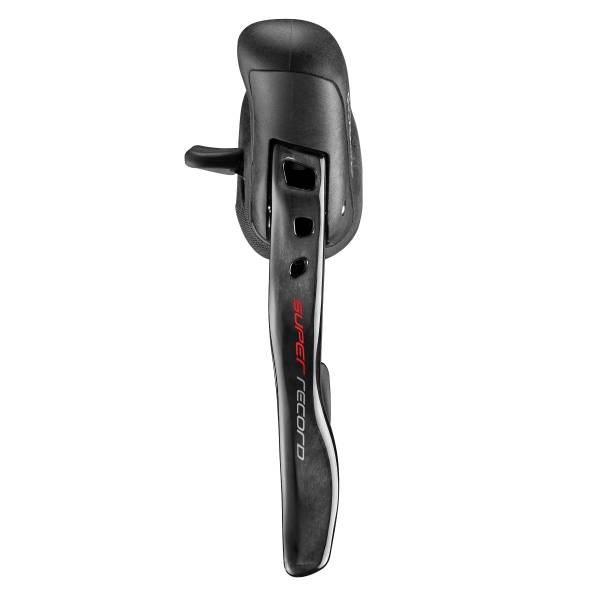

Campagnolo Super Record DB Ergopower Lever
More ergonomic, precise, powerful, and easier to maintain.

Comfort, control, speed, and responsiveness are among the key features of a racing bike's transmission, ensuring that the rider always has control. Thanks to Vari Cushion technology, the Campagnolo Super Record 2x12-speed Ergopower brake/shifter levers for disc brakes provide a better contact surface and an ergonomic, comfortable, and secure grip—essential qualities for those spending multiple hours on the road.

The inside of the shifters contains a concentration of technology and experience, starting with the "One Lever, One Action" function, which assigns a function to each lever, thus avoiding shifting errors due to fatigue or in hectic phases. The optional multiple shifting via the Ultra Shift mechanism is also noteworthy, allowing the chain to move when downshifting by three gears and upshifting by up to five gears. This means that the pedaling rhythm does not need to change even with unforeseen bumps or speed corrections, ensuring surprisingly fast and smooth shifting.

The Ergopower brake/shifter levers also offer extensive adjustment options: for adaptation to different hand sizes, the brake lever can be brought closer to the grip thanks to Reach Adjustment, while AMS Adjustment allows for the modulation of the shifting engagement point via special levers. The brake levers feature a double curvature to enhance grip and two slots to complement the Reach Adjustment.

Highlights of the Super Record Ergopower Brake/Shifter Lever
- Vari-Cushion covers for a comfortable, secure grip in any riding position
- One-Lever-One action and direct response for perfect shifting every time
- Simultaneous shifting of up to 5 gears with Ultra Shift
- AMS Adjustment offers 2 settings for modulating braking force
- Ergonomically adjustable grip width for any hand and finger size
- Material: composite (lever body), carbon (lever)
- Weight: approx. 462 grams (pair, manufacturer's specification)

Campagnolo Flat Mount Brake Caliper
Powerful, flexible, and reliable.

Thanks to their phenolic resin pistons with a diameter of 22 mm, the Campagnolo Flatmount disc brake calipers enable powerful and modular braking performance in any situation. This lightweight material provides good thermal insulation, ensuring that braking performance remains consistent over the long term.

To meet the demand for maximum performance, the forged aluminum construction provides the necessary stiffness and strength. The return mechanism of the pistons has been optimized for a quick return of the brake pads to their starting position, simultaneously dampening vibrations during braking and minimizing the total play between the brake pad and disc (0.4 to 0.8 mm).

Particular attention was also paid to simplifying maintenance and assembly tasks during the development of the caliper. Accordingly, the pads are equipped with wear indicators. Their replacement is also facilitated by the absence of physical return springs. The insertion of the disc into the caliper has also been optimized to make wheel changes easier and faster.

Highlights of the Hydraulic Disc Brake Caliper
- Forged aluminum construction for maximum stiffness and durability
- Phenolic resin pistons ensure consistent braking performance
- Improved brake pad return mechanism to reduce vibrations
- For 140 and 160 mm brake discs (140 mm version for max. rider weight of 82 kg)
- DB310 brake pads with unique organic brake pad composition
- Material: aluminum (brake caliper), phenolic resin (piston)
- Weight: approx. 118 grams (140 mm brake caliper including brake pads, manufacturer's specification)

Scope of delivery:
- Hydraulic disc brake set:
- Ergopower brake/shifter lever
- Brake caliper, including brake pads
- Brake line (filled)

Hydraulic, with adjuster, mechanical shifting, Ergopower, sold individually.
Hydraulic braking, Flat Mount, including brake pad holder and brake hose (filled with Campa mineral oil LB-300 xs red).
Left, front, 2-speed, for 160mm, including bolts.

Brand: Campagnolo
Type: Brake/Shifter
Model: Super Record
Version: Disc Brake
Mounting: Front Wheel
Diameter: 160 mm
Variant: Hydraulic
Mounting: Flat Mount (FM)
Features: with adjuster
Material: Aluminum, carbon
Color: Black
Supplier Article Number: EP21-SRD12LF6
