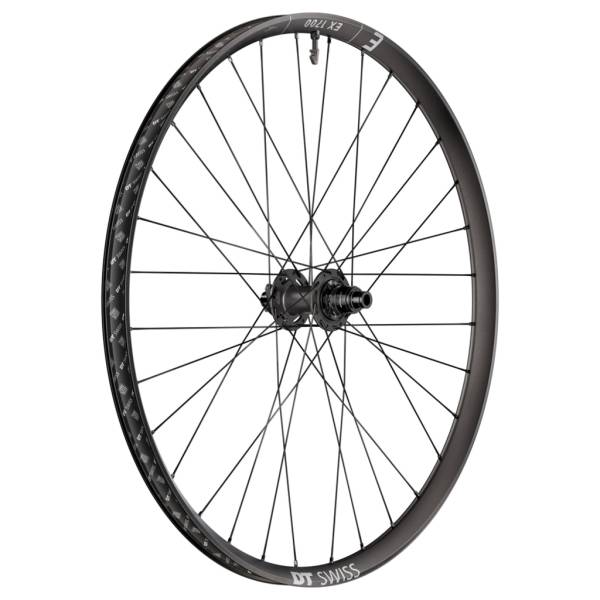

DT Swiss EX1700 Classic 30 Rear Wheel 29" 148mm Disc IS CB

The DT Swiss EX 1700 is a 29-inch aluminum rear wheel designed for enduro bikes, featuring a 12 x 148 mm Boost frame, SRAM XD cassette, and six-bolt brake rotor. Its welded asymmetric rim boasts a 30 mm internal width to accommodate modern mountain bike tires and comes ready for tubeless setup with rim tape and a Presta valve included. The DT Swiss 350 rear hub integrates a Ratchet DEG 72 freehub system with adjustable DF technology, allowing for 0, 10, or 20 degrees of freehub movement to customize pedal-kickback behavior on rugged terrain. Thirty-two DT competition race spokes provide robust support for the rear wheel under drivetrain, braking, and impact loads. Before placing your order, ensure the 29-inch diameter, Boost axle spacing, SRAM XD cassette interface, and six-bolt rotor mounting are compatible. After installation, be sure to torque the cassette and rotor to their specified values and inspect the rim and spoke tension following heavy impacts.

- 29-inch aluminum rear wheel for enduro mountain bikes
- 12 x 148 mm Boost thru-axle hub standard
- SRAM XD freehub for compatible 11V and 12V MTB cassettes
- IS six-bolt disc-rotor interface
- Welded asymmetric rim with a 30 mm internal width
- DT Swiss 350 hub with Ratchet DEG 72 freehub system
- Adjustable DF freehub movement at 0, 10, or 20 degrees
- Tubeless-ready with rim tape and Presta valve included

Specifications
Brand: DT Swiss
Model: EX 1700 Classic 30
Type: MTB wheel
Intended Use: Enduro
Wheel Position: Rear
Wheel Size: 29"
Tubeless Ready: Yes
Rim Internal Width: 30 mm
Rim External Width: 35 mm
Rim Height: 22 mm
Valve Type: Presta
Hub Model: DT Swiss 350
Axle Standard: 12 x 148 mm
Axle Diameter: Ø12 mm
Hub Width: 148 mm
Brake System: Disc brake
Brake Rotor Interface: IS 6-bolt
Freehub Body: SRAM XD MTB
Freehub System: Ratchet DEG 72
Engagement Points: 72
DF Adjustment: 0°, 10° or 20°
Number Of Spokes: 32
Spokes: DT competition race
Spoke Pattern: Three-cross, 1:1
Nipples: DT ProLock Squorx ProHead aluminum
Max. Load: 130 kg
ASTM Classification: 5
Weight: 1127 g
Rim Material: Aluminum
Color: Black
