by.Schulz Stem Adapter A-Head 22.2 -> 28.6mm - Black

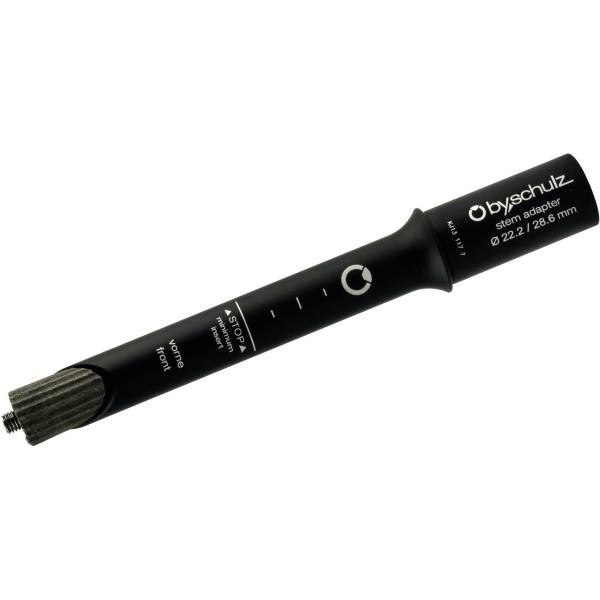

BY.SCHULZ A-Head Stem Adapter Quill

The Quill by.Schulz makes bicycles compatible with the classic 1 “or 1 1/8“ threaded fork for the A-Head standard.
Whether on old racing bikes, city or trekking bikes - the Quill creates a practical, technically elegant solution to use A-Head stems.
Due to the freely selectable insertion depth, the handlebar height can be varied continuously by 70 mm and without spacers.
Clamped in the steerer tube, the adapter replaces the 1 “or 1 1 1/8“ stem and offers a stepless height adjustment with a maximum of 70 mm in / out - without any spacers.
Perfect to adjust the handlebar height to your needs and the purpose of your cruiser.
On the 60 mm long clamping area of the robust aluminum adapter there is space for a threadless 1 1/8 ”ahead stem.

Technical specifications:
Material: aluminum AL-6061-T6
Compatibility fork: threaded forks with 1 "or 1 1/8"
Overall length: 220 mm
Insertion length: 145 mm
Minimum insertion depth: 75 mm
Adapter length: 60 mm
Stem clamp: 1 1/8 "
Color: black anodized
Weight according to the manufacturer: 320g

Scope of delivery: 1x BY.SCHULZ A-Head Stem Adapter Quill incl.Top Cap Rubber
Originalnumber 10461
