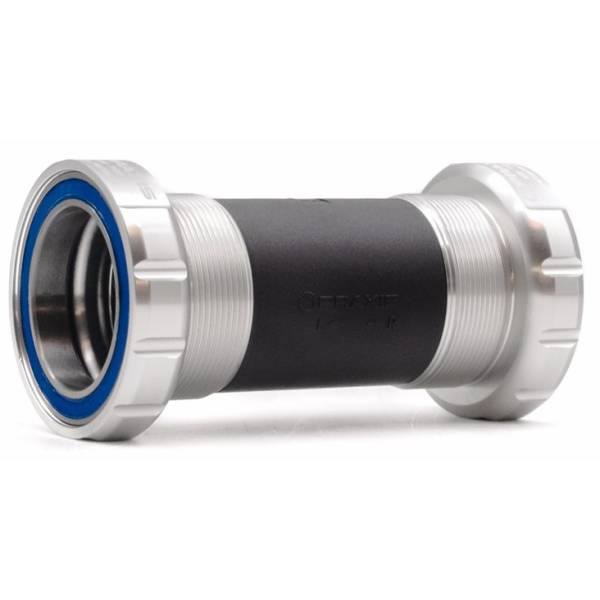

Praxis Bottom Bracket Adapter M30 BSA 68-73mm - Silver

This Praxis M30 bottom bracket is designed for mounting a Praxis M30 crankset in a frame with BSA threads. The bottom bracket is suitable for both road bikes and mountain bikes with a shell width of 68 mm or 73 mm. It features Enduro-quality bearings and aluminum cups. The inner diameter of the bearing on the drive side is 30 mm and 28 mm on the non-drive side. During installation, the wave washer must be placed on the drive side. A special Praxis BB tool is required for installation.

- Bottom bracket with BSA threads
- Compatible with Praxis M30 cranksets
- Suitable for road bikes and mountain bikes
- Compatible with frames with a shell width of 68 mm or 73 mm
- Equipped with Enduro-quality bearings and aluminum cups
- Wave washer must be placed on the drive side
- Special Praxis BB tool required for installation

Specifications
Brand: Praxis
Type: M30 - BSA thread
Product type: Bottom bracket
Bracket shell diameter: 34.8 mm
Inner diameter of drive side bearing: 30 mm
Inner diameter of non-drive side bearing: 28 mm
Compatible shell width: 68 mm and 73 mm
Color: Silver
