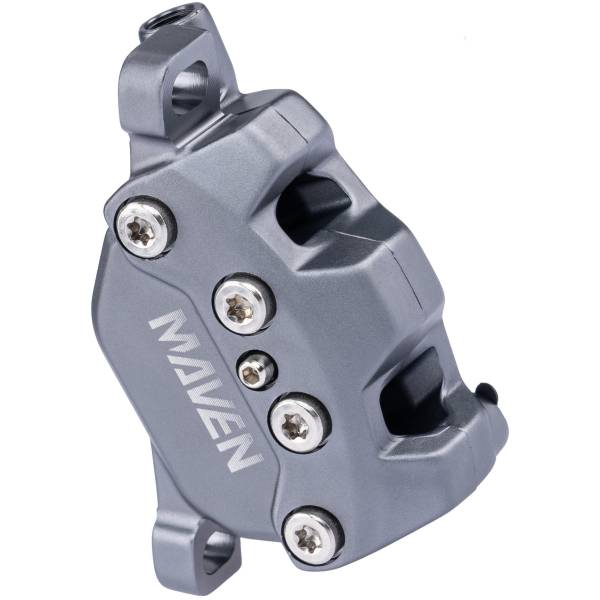

Sram Brake Caliper For. Maven Ultimate/Silver/Bronze -Silver

Modern mountain bikes have redefined what riders are capable of, pushing the demands for serious power further than ever before.
Maven is SRAM’s answer to that evolution, with monstrous 18 and 19.5 millimeter pistons that deliver 50 percent more power than a Code disc brake.
But best-in-class power means nothing if you can’t harness it.

Swinglink translates rider input into progressive power throughout the lever pull, preserving SRAM’s signature ride feel.
And thanks to a stiff 4-bolt caliper that dissipates incredible heat, that feel stays consistent, so the last corner feels like the first.
But with so much base power on tap, there’s more range than ever to fine-tune the ride quality to your liking with different pad materials and rotor sizes.
SRAM Maven Bronze has a Dark Polar anodized finish.

Compatible with DB-MVN-BRZ-A1, DB-MVN-SLV-A1, DB-MVN-ULT-A1 hydraulic disc brake system.

- 18 and 19.5 millimeter pistons for superior power
- SwingLink™ technology for an effortless ride
- Stiff 4-piston caliper with best-in-class heat management and easier bolt access
- Organic brake pads are standard for best-in-class modulation and quietest ride
- Mineral oil for low maintenance and performance
- For use with Maxima Mineral Brake Fluid only

- SwingLink:
SRAM disc brakes feature optimized pad action, resulting in a shorter - idle stroke at the brake lever.

To ensure that this does not compromise modulation, SRAM developed the special SwingLink™ cam shape, which creates a perfect balance between power and precision when the pad and rotor come into contact.

- Bleeding Edge:
In this brake fluid circuit, the bleed hole has been moved to the bottom of the caliper, so that all four piston bores can reach it.
This naturally fills the caliper with fluid during bleeding, making for easier and more consistent maintenance.

Specifications:
Brand: Sram
Model: Maven
Type: Hydraulic caliper
Suitable for: Maven Ultimate/Silver/Bronze
Material brake lever caliper: Aluminum (forged)
Material brake pistons: Phenolic plastic
Hardware: Steel
Color: Silver

Supplier part number: 11.5018.056.025
