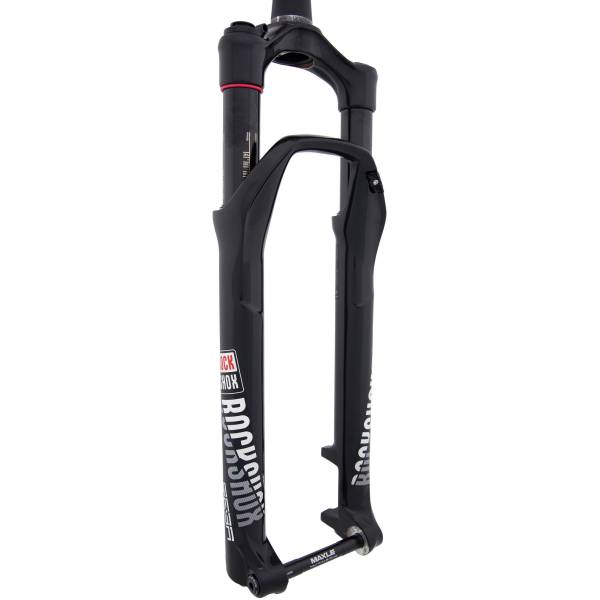

RockShox Reba RL Fork 29" Tapered 100mm OneLoc - Black

ROCK SHOX fork 29 "REBA RL SA 100mm 15x100 Maxle Stealth OneLoc tapered black 2020

The Reba has always stood for superior quality and performance as you are used to from RockShox. That's even more true today, because with the new chassis options, the Reba is a trailblazer in every discipline. From XC to lightweight trail inserts. With the technologies developed for SID, Reba and Revelation, the Reba is a complete solution for anyone who wants unmistakable RockShox performance in a proven package.

The Reba is a guarantee for a good balance of performance, lightweight construction and price. It shares the basic technologies of the top fork SID and provides a correspondingly good handling. The air spring allows the setting of the spring rate and characteristic curve via a positive and a negative chamber. The fork can be so perfectly matched to the weight of the driver, in addition, the progression can be adjusted using tokens to personal preference.

The damping motion control on the Reba RL has a factory-set trigger threshold, which triggers only on larger beats. During the journey, it is ensured that the fork does not wobble too much, even on a bump. For very hard starts and sprints, the fork also offers a lockout function, which can be operated depending on the version on the fork crown or the OneLoc remote control.

For Reba, there was no innovation in technology or design for 2020. The fork but a Maxle Stealth thru axle instead of the previously supplied in the scope Maxle Lite axle donated. This not only saves a few grams of weight, it also ensures a clean look on your bike.

OneLoc
The OneLoc lever is particularly suitable in conjunction with SRAM levers, such as their brake / shift lever or the Reverbbedienung. In addition, the long, ergonomic lever ensures minimum effort and maximum comfort.

Solo Air
The negative and positive air chambers are filled only by means of a valve at the same time. Which considerably simplifies the setting of the personal set-up.

Motion Control
Proven damping system, which has established itself as an integral part of the Reba for years.

Bottomless tokens
Allows individual adjustment of the air chamber size. This makes it possible for you to perfectly tune the spring characteristic of your fork to your travel stick.

Maxle Stealth
Very light thru axle which can be mounted and removed with a 6 mm Allen. In addition to a clean look, it also saves some weight on the unsprung mass.

Torque Caps
In order to improve the rigidity and steering precision of the overall system, the dropouts have been increased for the use of 31mm diameter end caps. Use with normal end caps is easily possible.

Technical specifications:

intended use : Cross Country, Trail
E-bike ready: no
Impeller size: 29 "
Material fork crown / shank: aluminum - hollow forged / aluminum
Material stanchions: Aluminum, 32 mm Straight Wall, black anodized (Fast Black)
Material dip tubes: magnesium
axle type : 15 x 100 mm thru-axle (Maxle Stealth incl.)
Steerer: tapered 1.5 "to 1 1/8" (28.6 mm to 40 mm), approx. 265 mm in length (unabridged)
Travel: 100 mm
Spring system: SoloAir, setting the spring hardness by two air chambers which are filled via a car valve
Adjustment of the spring characteristic: yes, via bottomless tokens (max. 3 permissible)
Attenuation: Motion control, rebound externally adjustable, low-speed compression up to lockout via OneLoc remote control
Lockout: handlebar remote control (OneLoc)
Installation height: 506 mm
Brake mount: Postmount (160 mm)
Max. permissible brake disc size: 220 mm
Tire diameter max .: 755 mm
Tire width max .: 62 mm
Offset: 51 mm
Color: black gloss (Gloss Black, Casting), black anodized standpipes (Fast Black)

Weight according to the manufacturer: about 1633g

Delivery:
1x ROCK SHOX suspension fork 29 "REBA RL SA 100mm 15x100 Maxle Stealth OneLoc tapered black 2020
1x OneLoc handlebar remote control (right)
1x Maxle Stealth thru axle
1x Star Nut Ahead claw
Originalnumber 00.4020.145.009
