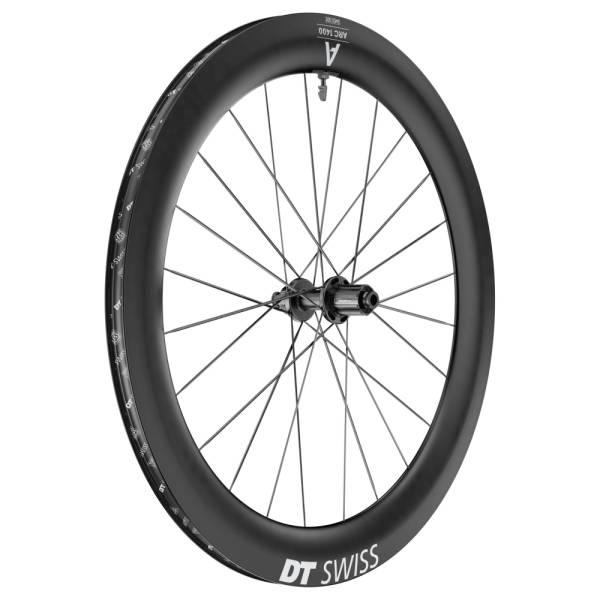

DT Swiss ARC1400 Rear Wheel 28" Shimano 10/11S 65mm CL CB

The lead over your friends and rivals won’t just be handed to you. You will need to train hard to achieve your goals. Assisting you on your journey is the third generation of the benchmark ARC 1400 DICUT, now perfectly suited for wider tires. Thanks to their unique V-shape, they ensure optimum aerodynamics despite a larger inner rim width. Combined with the top-of-the-line 240 DICUT hub featuring the Ratchet EXP system and DT aerocomp II spokes, you’ll be ready to take the lead on your next ride.

Being a leader is not for the faint of heart. The third generation of ARC reaches a new peak of innovation, with a wider inner rim width of 22mm that ideally supports wider tires, providing you with grip and comfort. You’ll be able to surge ahead with enhanced speed over extended distances.

It’s no secret that professional cycling has seen a shift toward wider tires in recent years. To optimally accommodate this, a wider rim inner width is essential. An inner rim width of 22mm is perfectly suited for the 29mm AERO 111 tire, which has become the new standard, while maintaining optimal aerodynamic performance.

Increasing the inner width of the rim directly affects the frontal area of the wheel. The V-shape of the rim compensates for this and optimizes air resistance. As our wind tunnel tests demonstrate, this shape clearly provides the lowest base drag measured. Additionally, it offers a low steering moment, ensuring a smooth steering sensation for the rider.

Thanks to three distinctive rim heights, a wide variety of riding preferences can be accommodated: do you enjoy riding fast on various terrains without fearing an occasional steep climb? Then the 55mm rim height is ideal for you. The 65mm deep rims allow you to take the lead in sprints with their fast aero-optimized profile, perfect for flat-out rides on flat terrain. Finally, the highest rim, the 85mm, is the fastest and offers the lowest drag, making it ideal for triathlons or time trials.

No stone was left unturned. With our expertise, we ensured that all components were aligned in the quest to create the ideal wheelset that not only provides excellent aero optimization but also great rideability. Aero-optimized spokes, reduced to 20 count in the front wheel, offer a slight decrease in drag while saving weight.

DT Swiss hubs are renowned for their no-tool concept, allowing for tool-free conversion to all common axle and freehub body standards.

- Wider rims
- V-shape
- 3 rim heights
- Aero optimized components

Specifications
Brand: DT Swiss
Model: ARC1400
Type: Rear wheel
Dimensions: 28''
ETRTO: 622 mm
Rim: Carbon
Hub: Aluminum
Spoke: Stainless steel
Nipple: Aluminum
Freehub body: Aluminium
Weight: 871 g
Tubeless Ready: Yes
Hub type: 240
Freehub body: Shimano HG (mounted)
Freehub system: Ratchet EXP 36
Rim height: 65 mm
Outer width: 29 mm
Inner width: 22 mm
Axle system: 12 mm Thru Axle
Built-In dimension: 142 mm
Number of holes: 24
Spoke pattern: Two-cross (1:1)
Valve hole: Presta / SV Ø 6.5 mm
Brake system: Disc Center Lock
Spokes: DT aero comp® II t-head
Nipple: DT Pro Lock hidden aluminum
Recommended system weight: 110 kg (body weight + bike + equipment)
ASTM classification: 1
Approved for E-Bikes: No
