by.Schulz G.2 Suspension Seatpost Ø34.9mm 30mm Standard - Bl

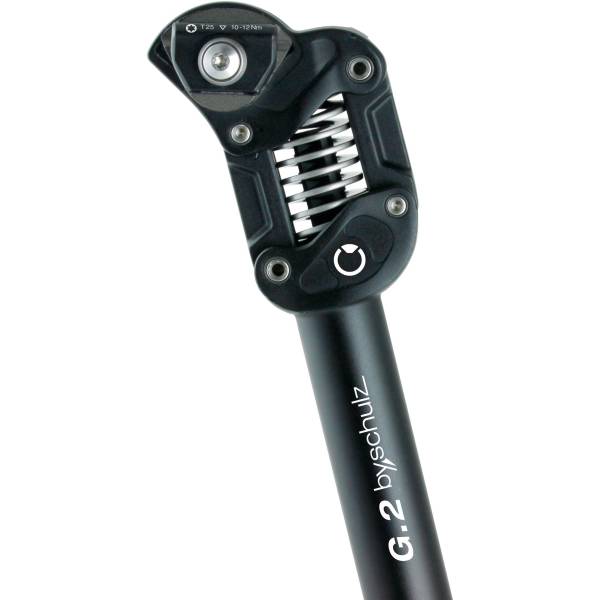

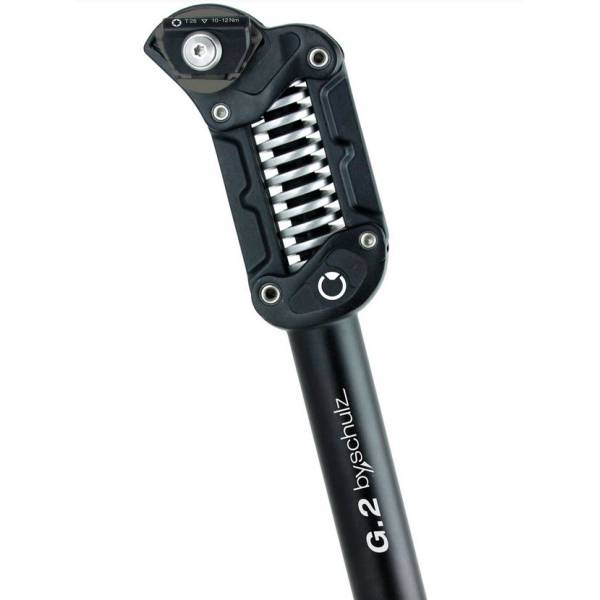

BY.SCHULZ Suspension Parallelogram Seat Post "G.2"
Ø 34.9 mm, travel approx. 30 mm, black anodized
Presentation packaging, refined seating behavior, high riding comfort,
IGUS polymer high-performance sliding bearing, easy spring and saddle replacement,
aluminum 3D forged, saddle clamp with fine adjustment and robust locking,
defined adjustment range with buffer, load capacity up to 150 kg body weight,
installation height approx. 99 mm, adjustable post, includes mud cover,
from 750 g 450 mm, standard (80-105 kg)
supplier article number 10738

Version: Suspension seat post
Diameter: 34.9 mm
Length: 450.0 mm
Spring travel: 30 mm
Minimum body weight: 80 kg
Maximum body weight: 105 kg
Material: Aluminum
Color: Black

This type of parallelogram suspension offers maximum riding and spring comfort.
It also features excellent technical specifications: total length 350 mm, compact aluminum construction with 100 mm installation height, 30 mm spring travel.
Other advantages include the quick and easy replacement of the external spring element and the very simple saddle mounting.
Adjustable tube, saddle clamp with fine adjustment and robust ratchet.

- IGUS polymer high-performance sliding bearings / stainless steel axles
- Fine response behavior, high riding comfort
- Easy replacement of spring and saddle
- Saddle clamp with fine adjustment and robust ratchet
- Defined adjustment range with stop
- Load capacity up to 150 kg rider weight
- E-bike ready

Delivery scope: G.2 seat post including neoprene protective cover and user manual

- Ensure that the inner diameter of the seat tube of the bike frame and the outer diameter of the G.2 ST or G.2 LT seat post match.
- Different sizes may lead to the clamp failing, resulting in accidents and material damage or personal injury.
- A reducing sleeve can be used to adjust the tube diameter of the seat post to the size of the seat tube.
- To adjust the seat post tube, we recommend the included double-grooved aluminum reducing sleeve from by.Schulz with a height of 120 mm.
