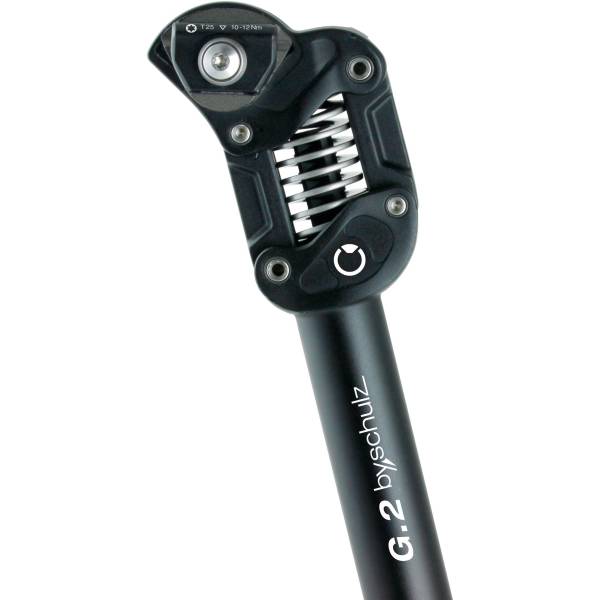

by.Schulz G.2 Suspension Seatpost Ø31.6mm 30mm E-Hard - Bl

BY.SCHULZ Parallel Suspension Seat Post "G.2"
Ø 31,6mm, travel approx. 30mm
self-service package, fine response characteristic, high ride comfort,
Igus polymer high performance plain bearings, easy spring and saddle exchange,
aluminium 3D forged, saddle clamp with fine adjusting and robust grating,
defined adjustment range with stop, rider weight up to 150kg,
installation height approx. 99mm, shaft can be shortened, incl. mud cover,
from 685g, black anodized
350mm, extra hard (125-150kg)
Originalnumber 10625

Design:suspension seat post
Diameter:31,6 mm
Length:350,0 mm
Travel:30 mm
Driver weight min.:125 kg
Driver weight max.:150 kg
Material:aluminium
Color:black

This type of parallelogram suspension offers maximum ride and suspension comfort.
There are also excellent technical features: total length 350mm, compact aluminum construction with 100 mm installation height, 30 mm spring travel.
Other plus points are the quick and easy change of the external spring element and the very easy saddle assembly.
Tube can be shortened, saddle clamp with fine adjustment and robust ratchet.

- IGUS polymer high-performance plain bearings / stainless steel axles
- Fine response behavior, high driving comfort
- Easy spring and saddle change
- Saddle clamp with fine adjustment and robust ratchet
- Defined adjustment range with stop
- Loadable up to 150 kg driver weight
- E-bike ready

Scope of delivery: G.2 seatpost including Neoprene protective cover and operating instructions

- Make sure that the inner diameter of the seat tube of the bicycle frame and the outer diameter of the G.2 ST or G.2 LT seatpost have the same measurements.
- Different dimensions can lead to a failure of the clamping as well as to accidents and property damage or personal injury.
- With a reducing sleeve, the tube diameter of the seatpost can be adapted to the size of the seat tube.
- To adapt the seatpost tube, we recommend the provided double-slotted aluminum reducing sleeve from by.Schulz with a height of 120mm.
