By.Schulz Profi Cut Tool Steerer Tube Saw Acc. 1 1/8" - Si

BY.SCHULZ Cutting Tool "Profi Cut Tool"
solid dealer steel version,
drilling and sawing pattern for the Speedlifter steering tube fitting
1 1/8"
Originalnumber 10096

As a basic requirement for the installation of Speedlifter systems, no “starnut” may be installed in the threadless 1” or 1 ¼” metal fork shaft.
The fork protrusion above the headset should be at least 46mm.
In addition, the shaft must be provided with a defined longitudinal slot at the rear in the direction of travel.
In order to implement this precisely, by.schulz has developed the Profi Cut Tool for dealers.

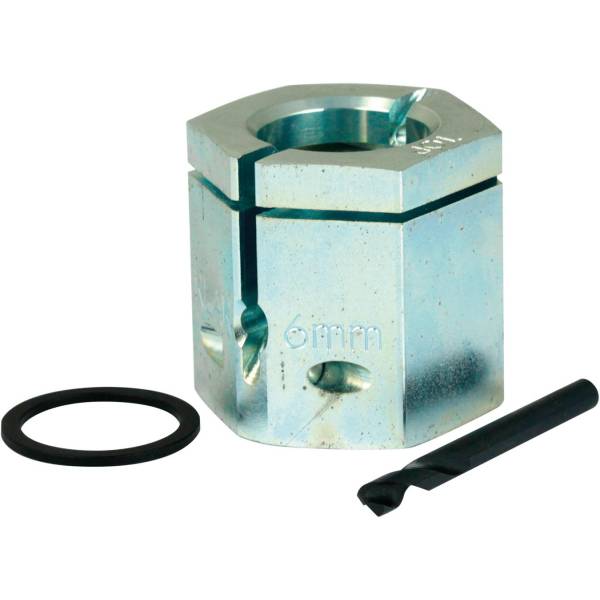

The galvanized tool made of tool steel serves as a sawing and drilling template.
The 6mm metal drill included in the scope of delivery is used to drill a relief hole for the slot.
Then the steerer tube is shortened with a metal hacksaw and the longitudinal slot,
which ends in the relief hole, is made, using the horizontal and vertical guides.
Tip: during installation with the Profi Cut Tool, the bicycle should stand with the front wheel on the ground,
this makes adjustment of the steerer tube and the following installation of the Speedlifter easier.

Solid dealer tool made of steel
Drilling and sawing template for Speedlifter steerer tube slots
with 6mm drill bit
Material : Steel
Colour : silver
Steerer Tube diameter : outer ø 28,6 or 31,6 mm
Weight : from approx. 602g
Scope of delivery: Profi Cut Tool incl. special drill 6mm
