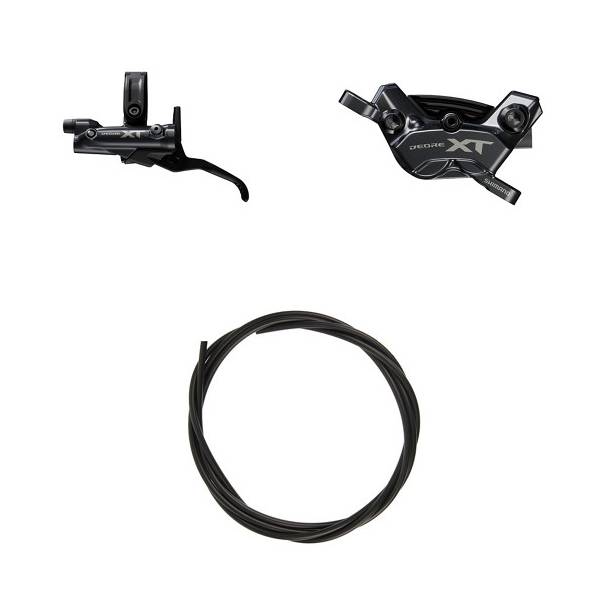

Shimano XT M8220 Disc Brake Set Front Left 1000mm - Black

Enduro and trail riders can expect maximum SHIMANO performance with the XT BR-M8220 disc brake. Experience 4-piston technology at its best for enhanced speed, focus, and control. Thanks to the revised SERVOWAVE technology, the overall system impresses with its quick yet easily adjustable response behavior, ensuring that no descent is too steep and no trail too challenging.

The completely redesigned sensor unit with I-SPEC EV clamp supports the end of the reservoir directly on the handlebars. The additional support in the direction you pull the lever increases stiffness and stability during intense braking maneuvers, providing more braking feel and control on the trail. Additionally, a differently designed pivot point compared to its predecessor allows for a more natural finger movement. The grip width can be easily adjusted with an integrated adjustment wheel. The hydraulic system is filled with SHIMANO LOW VISCOSITY mineral oil, which has a significantly lower viscosity than standard SHIMANO mineral oil. This results in faster and more precise transfer of brake pressure and consistent braking behavior in various conditions and temperatures.

The J-Kit comes pre-filled, and thanks to the pre-assembled olive, the cables can be easily shortened and even routed through the frame. Additional bleeding is usually unnecessary.

- Fully hydraulic disc brake with 4 pistons, self-adjusting brake
- 2-finger brake lever with shared clamp, easy installation possible
- One way bleeding
- Funnel bleeding
- J-KIT DIRECT version: pre-filled and bled, ready for installation for easy shortening and placement of the line

Specifications:
Brand: Shimano
Model: XT M8220
Type: Disc Brake
Application: MTB
Brake Lever: BL-M8200, material: aluminum (main brake cylinder), aluminum (brake lever), stainless steel (mounting screw)
Brake Caliper: BR-M8220, Postmount; material: aluminum, steel (mounting screws)
Brake Line: SM-BH90-SBM
Lever Size: 2 fingers
SERVO-WAVE: yes
I-SPEC standard: I-SPEC EV
Adjustable Free Stroke: yes
Grip Width Adjustable: yes (tool-free)
Open Clamp: yes (for handlebar Ø: 22.2 mm)
Brake Fluid: SHIMANO LOW VISCOSITY mineral oil
Compatible Brake Pads: type P / type D / type N
Installed Brake Pads: P03A-RF Resin (organic / aluminum backing plate / with cooling fins)
Recommended Brake Disc: SHIMANO RT-CL800, SM-RT86
Color: Black

Available in versions:
Front Wheel (left lever, 1000 mm brake line length, weight: approx. 310 g)
Rear Wheel (right lever, 1700 mm brake line length, weight: approx. 330 g)
