Shimano XT M8200 Disc Brake Set Front Left 1000mm - Black

High braking performance, excellent modulation, and premium materials.
The SHIMANO XT BR-M8200 disc brake for cross-country, marathon, and touring use delivers outstanding performance in all situations.
In developing these powerful 2-piston brakes, SHIMANO engineers went beyond cosmetic design adjustments, directly adapting the entire brake lever to the design and technology of the XTR.

The completely redesigned sensor unit with I-SPEC EV clamp supports the end of the reservoir directly on the handlebar. The additional support in the direction in which you pull the lever increases stiffness and stability during intense braking maneuvers, providing enhanced brake feel and control on the trail. Additionally, a differently designed pivot point compared to its predecessor allows for a more natural finger movement.
The grip width can be easily adjusted with an integrated adjustment wheel.
The hydraulic system is filled with SHIMANO LOW VISCOSITY mineral oil, which has a significantly lower viscosity than standard SHIMANO mineral oil. This ensures faster and more precise transmission of brake pressure and consistent braking behavior in various conditions and temperatures.

The J-Kit comes pre-filled, and thanks to the pre-assembled olive, the cables can be easily shortened and even routed through the frame. Therefore, additional bleeding is usually unnecessary.

- Fully hydraulic disc brake with 2 pistons and self-adjusting brake
- 2-finger brake lever with shared clamp, easy installation possible
- One way bleeding
- Funnel bleeding
- J-KIT DIRECT version: pre-filled and bled, ready for installation for easy shortening and placement of the line
- Front wheel - left lever, 1000 mm brake line length, weight: approx. 287 g

Specifications:
Brand: Shimano
Model: XT M8200
Type: Disc brake set
Application: MTB
Brake lever: BL-M8200, material: aluminum (main brake cylinder, brake lever), steel (mounting screw)
Brake caliper: BR-M8200, Postmount; material: aluminum, steel (mounting screws)
Brake line: SM-BH90-SBM
Lever size: 2 fingers
SERVO-WAVE: yes
I-SPEC standard: I-SPEC EV
Adjustable free stroke: yes
Grip width adjustable: yes (tool-free)
Open clamp: yes (for handlebar Ø: 22.2 mm)
Brake fluid: SHIMANO LOW VISCOSITY mineral oil
Compatible brake pad lining: type G / type J
Installed brake pads: G05A-RX Resin (organic / Resin)
Recommended brake disc: SHIMANO RT-CL800, SM-RT86
Color: Black

Supplier article number: IM82001JLFPRA100

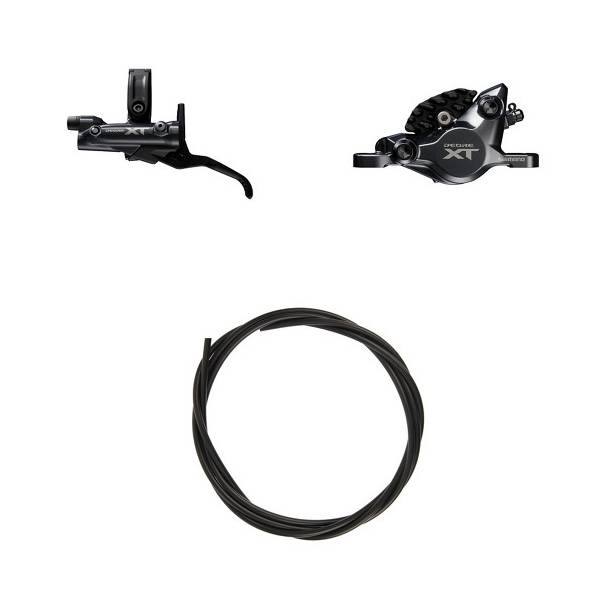

Delivery scope:
1 x SHIMANO DEORE XT BL-M8200 brake lever
1 x SHIMANO DEORE XT BR-M8200 brake caliper
1 x SHIMANO SM-BH90-SBM brake line
1 x extra Insert-Pin (if the brake line needs to be shortened)
