Ortlieb Thru Axle Thru Axle M6 Connector 1.5mm - Black

The Thru Axle M6-CONNECTOR adapter axle from Ortlieb is a practical puzzle piece for mounting your Ortlieb Quick-Rack luggage carrier if your bike frame does not have M5/M6 mounting points for luggage carriers.

To do this, the existing thru axle is replaced by the Thru Axle M6-CONNECTOR, which has M6 threads on both sides for mounting the QUICK-RACK mounting points.

The connector can replace axles with a length of up to 180 mm.
Thanks to the supplied spacers, you can adjust the length of the thru axle.

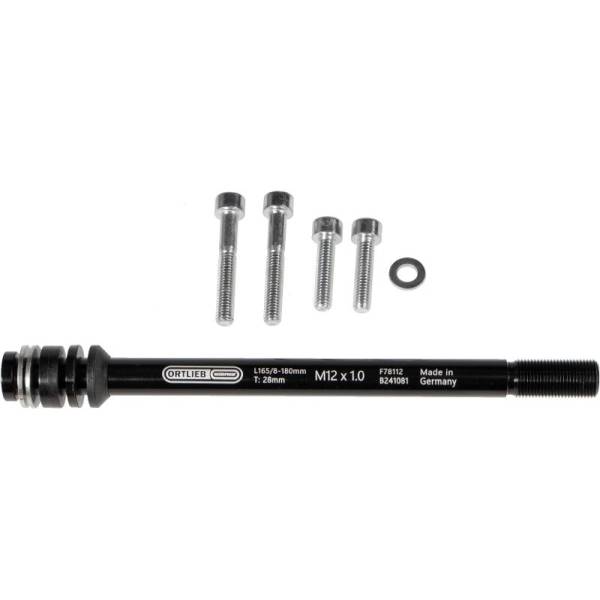

Scope of delivery:
1 x ORTLIEB THRU AXLE M6-CONNECTOR thru axle
Incl. spacer for length adjustment (2 x 1.5 mm, 1 x 3 mm, 1 x 6 mm, 1 x 3 mm conical)
2 x M6 x 40mm, 2 x M6 x 25mm screws
M6 washer

- Thru axle adapter for all common 12 mm frame thru axles
- replaces the previously installed thru axle (up to 180 mm axle length)
- integrated M6 thread on both ends for mounting the QUICK-RACK mounting points
- including spacer for length adjustment (165 mm conical / 168 - 180 mm adjustment range)

Specifications:
Brand: Ortlieb
Model: Thru Axle
Type: Thru axle
Material: Aluminum
Front (rear wheel) installation size: 12 mm thru axle (up to 180 mm length)
Wire length: approx. 28 mm
Length: approx. 165/168 - 180 mm (adjustable via supplied spacers)
Colour: Black
