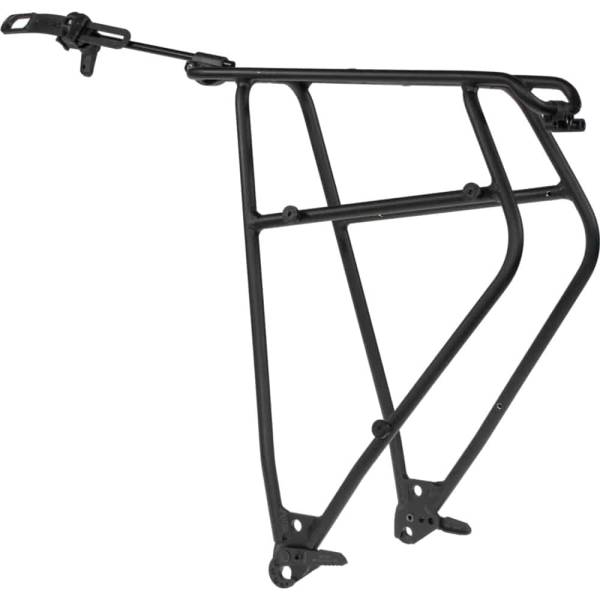

Ortlieb Quick Rack XL Luggage Carrier 28/29" Incl. QR

Quick on and even quicker off.
The Ortlieb Quick-Rack luggage carrier can be mounted and dismounted on your bike in a flash.
In size XL, it is compatible with tire widths up to 2.6 inches (when mounted with the optionally available quick-release adapter axle) or even 3 inches (when directly mounted with M5/M6 threads) and can support loads of up to 26 kg.
With the Quick-Release function, you can attach and remove this handy luggage holder in just seconds.

In the first step, you have two options for mounting it on your bike: You can attach the Quick Rack using the insertable adapter axle Thru Axle M6-CONNECTOR (available separately under article number 875232) in the axle, or you can mount it directly on the frame using the threads of the luggage carrier (M5/M6). Then, the carrier is secured to the seat tube or seat post with a rubber band via the upper mounting rod.
The Ortlieb QUICK-RACK luggage carrier is ready for use! It is compatible with all ORTLIEB Quick-Lock system bags (QL1/2.1/3/3.1/Top-Lock) and can carry up to 26 kg.

To remove the carrier, simply loosen the attachment on the seat tube and the two locking levers on the support points.
The two support points on the eyes remain mounted on the bike.

Delivery includes:
- 1 x Ortlieb Quick-Rack XL luggage carrier
- including mounting materials for installation on luggage carrier threads (M5, M6)
- long mounting rod for the seat tube (300 mm)
- preparation for optionally available rear light
- Ortlieb QL3/QL3.1 attachment elements

- Luggage carrier with Quick-Release system for fast mounting and dismounting
- Quickly switch from a sporty bike to a city or touring bike and back
- Allows attachment of compatible bike bags with ORTLIEB QL1, QL2.1, QL3.1, and TOP-LOCK systems
- Closed QL3/3.1 attachment elements can be screwed in
- With two hanging levels, e.g., for simultaneous use of a basket and side bags
- If mounted via an adapter axle, suitable for tires up to 29"/2.6 mm (optional adapter axle required, order number 2351000)
- For direct mounting on the luggage carrier or via QUICK RACK SEAT STAY ADAPTER suitable for tires up to 29"/3" (adapter available separately, order number 2321534, SEAT STAY ADAPTER not suitable for carbon frames)
- Horizontal and vertical rods with a diameter of 12 mm
- Luggage carrier platform with a tube diameter of 10 mm
- Adjustable seat tube bracket for optimal support
- Suitable for mounting a rear light (50 mm hole spacing, LED e.g., order number 2308864)
- Includes mounting set for bike frames with M5 or M6 threads

Specifications:
Brand: Ortlieb
Model: Quick Rack XL
Type: Luggage Carrier
Material: Aluminum
Compatible Wheel Sizes: max. 29"/2.6" (when mounted via adapter axle) max. 29"/3" (when directly mounted)
Tube Diameter: 10/12 mm
External Width of Contact Surface: 100 mm
Max. Installation Width: 195 mm
Load Capacity: up to approx. 27 kg
Weight: approx. 700 g
Compatible Attachment Systems: ORTLIEB TOP LOCK, QUICK-LOCK1, QUICK-LOCK2.1, QUICK-LOCK3.1
Color: Black
