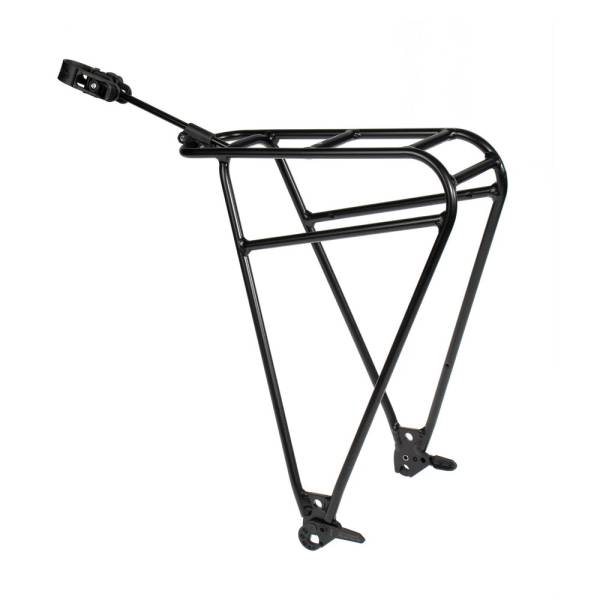

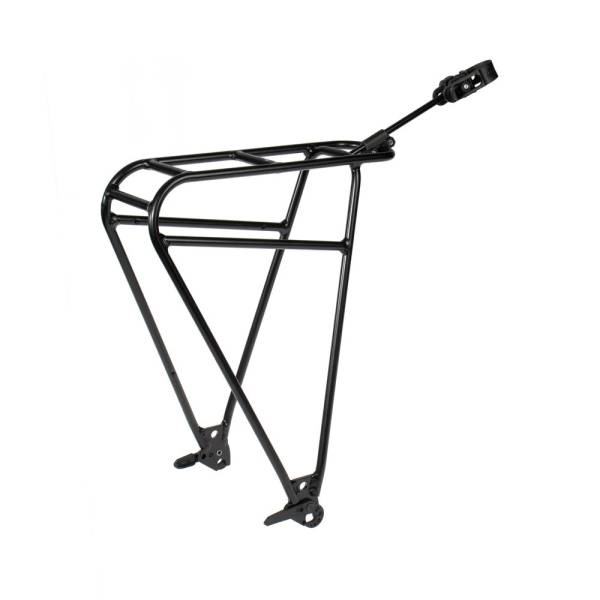

Ortlieb Quick Rack L Luggage Carrier For. QL1/2/2.1/2.2 - Bl

Quick on and even quicker off.
The Ortlieb Quick Rack luggage carrier can be mounted and dismounted on your bike in no time.
In size L, it is compatible with tire widths up to 2 inches (when mounted with the optionally available quick-release adapter axle) or even 3 inches (when directly mounted with M5/M6 threads).
With the Quick-Release function, you can attach and remove this handy luggage holder in just seconds.

In the first step, you have two options for mounting on the bike:
You can attach the Quick Rack to the axle using the Thru Axle M6-Connector plug-in adapter axle (available separately), or you can mount it directly to the frame in the luggage carrier's threads (M5/M6).
Next, the carrier is secured to the seat tube or seat post using a rubber band attached to the upper mounting rod.
The Ortlieb Quick Rack luggage carrier is ready to use! It is compatible with all Ortlieb Quick-Lock system bags (QL1/2.1/3/3.1/Top-Lock) and can carry up to 20 kg.

To remove the carrier, simply release the attachment on the seat tube and the two locking levers at the support points.
The two support points on the eyes remain mounted on the bike.

- Luggage carrier with Quick-Release system for fast mounting and dismounting
- Quickly switch from a sporty bike to a city or touring bike and back again
- Allows attachment of compatible bike bags with ORTLIEB QL1, QL2.1, QL3.1, and TOP-LOCK systems
- Closed QL3/3.1 attachment elements can be screwed in
- With two hanging levels, e.g., for simultaneous use of a basket and side bags
- When mounted via an adapter axle, suitable for tires up to 28"/50 mm (optional adapter axle required)
- For direct mounting on the luggage carrier or via Quick Rack Seat Stay Adapter, suitable for tires up to 29"/3" (adapter available separately, Seat Stay Adapter not suitable for carbon frames)
- Horizontal and vertical rails with a 10 mm rail diameter
- Adjustable seat tube bracket (300 mm) for optimal support
- Suitable for mounting a rear light (50 mm hole spacing, LED e.g., order no. 2308864)
- Can also be used on fully suspended bikes
- Includes mounting set for bike frames with M5 or M6 threads

Specifications:
Brand: Ortlieb
Model: Quick Rack L
Type: Luggage Carrier
Material: Aluminum
Compatible Wheel Sizes: max. 28“/50 mm (when mounted via adapter axle) or max. 29"/3" (when directly mounted or mounted with Seat Stay Adapter)
Tube Diameter: 10 mm
Outer Width of Contact Surface: 100 mm
Max. Installation Width: 195 mm
Load Capacity: up to approx. 20 kg
Weight: approx. 605g
Compatible Attachment Systems for Bike Bags: ORTLIEB TOP LOCK, QUICK-LOCK1, QUICK-LOCK2.1, QUICK-LOCK3.1
Color: Black

PLEASE NOTE:
The luggage carrier is NOT suitable for mounting and using child seats or for attaching a bicycle trailer.
